Model:SRP08 Product dimension: | φ16-φ60mm 20-18-mm depend on products |
| Capacity： | 80-100pcs/min |
| Motor power for Driving wheel | 3.7KW-1pcs |
| Motor for printing plate | 2.2KW–1pcs |
| Motor for drive chain | 2.2KW-1pcs |
| Motor for driving ink stick | 0.06KW—6pcs |
| PrinterMainMotor | 7.5HP(5.5KW) |
| Cuttingsystemmainmotor | 3HP(2.2KW) |
| Roaster main motor | 3HP(2.2KW) |
| Driv emotor | 90W+90W+90W=270W=0.27KW |
| UV drying system | 10KW |
| Static eliminator system | 1.5KW |
| Roaster heating system | 1.2KW*4=4.8KW |
| Working air pressure | 0.4-0.8Mpa |
| Working voltage | 380V/420V Can customize any Voltage |

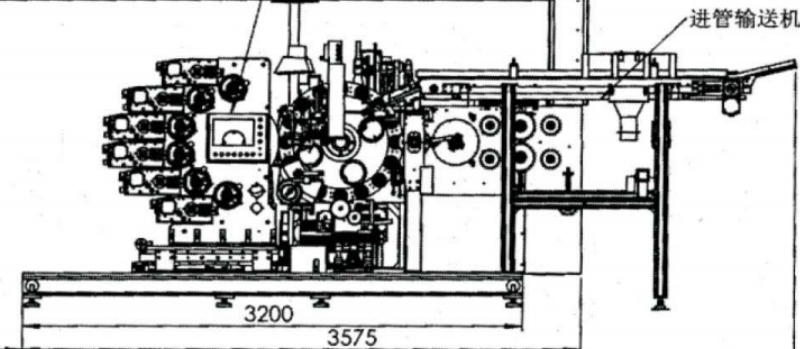

| External dimensions Printing head : | 3200*1600*1800mm |
| Drvingoven:3000kg | 9500*1000*2000mm |
| weight Printinghead: | 4000kg |
| weight Drying oven: | 3000kg |
