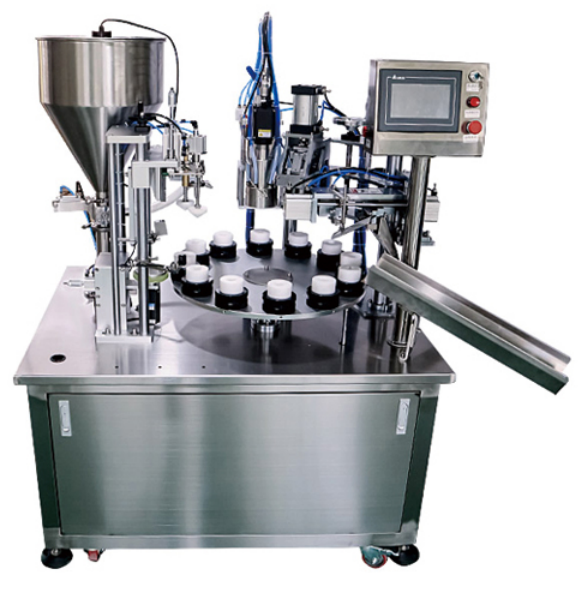

Touch screen operation, user-friendly design, simple and intuitive operation. Pneumatic filling control ensures the accuracy of filling.
Photoelectric sensing and pneumatic door linkage control. Pneumatic execution control valve, efficient and safe. The flow channel can be independently adjusted and cleaned. Adopting anti drip and anti wire drawing filling nozzle structure design.
The overall material of the machine is composed of stainless steel and anodized aluminum alloy.
The body connected to the material is made of SUS304 stainless steel.
[Working pressure]: 0.4~0.6Mpa
[Equipment voltage]: AC220V 50/60HZ
[Equipment power]: 1.8KW
[Filling range]: 20-200ml
[Applicable pipe diameter]: 13-50mm
[Applicable pipe height]: 80-220mm
[Filling speed]: 30-48 bottles/minute
[Filling accuracy]: ≤ 100g ± 1g, 100g ≥ ± 1%
[Equipment weight]: 550kg
[Dimensions]: 1350mm * 900mm * 1650mm
production process
Manual tube placement - automatic benchmarking - automatic filling - internal heating
Automatic tail sealing - automatic tail cutting - ejecting finished products
Tail cutting method
Support customization: right angle/R angle/fan-shaped/flat tube/special texture tail sealing

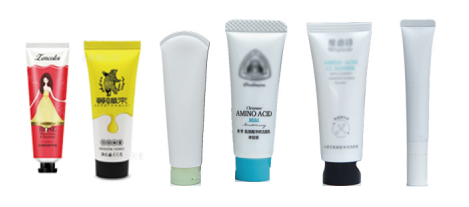

Suitable for filling and sealing various aluminum-plastic pipes and plastic hoses
